Adds a chart line to a NewXY chart.  Function has four parameters, but only the first two parameters are required.



First parameter is a BPV data series,  Second parameter is the element count of the first parameter's data series.



Two optional parameters are, Title and Color.  Title will be the name displayed with the series, and Color will determine the color if its value isn't assigned the default value of "-1".  Leaving the Color parameter blank will lets the chart automatically designate an unused color.



Syntax:

chart.AddLineSeries( AsSeries( LineSeries ), SeriesElements, [Title], [Color] )



Parameter:

Description:

LineSeries

Name of BPV Series containing data to be plotted.

Note:

Use with all BPV Numeric or String series that are passed to any Chart parameter.

AsSeries(...) function conditions the series so the chart function will be able to use the information contained within each of the series elements.



SeriesElements

Number of data elements in the series.

Note:

Manually Sized Series:

GetSeriesSize function provides the element count.



Auto-Index series:

BPV: test.currentDay property reports last series element index.

IPV: instrument.bar property reports last series element index.

[Title]

Parameter is a text field.  Name entered will be used as the name for the line series label.  If the name option is not used, the name of the data series name is used.

[Color]

A color value of: -1 - will uses the chart's automatic color assignment.

See ColorRGB and the Colors for information on how to use other colors.



Example - 1:

'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  '  LINE CHART EXAMPLE
  '  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  '  Establish Scatter Chart image size
  iChartWidth = 500   '  X-Axis Width
  iChartHeight = 300   '  Y-Axis Height

  '  Create a image
  chart.NewXY( "Line Chart Example", iChartWidth, iChartHeight )

  '  Size the Scatter Dot Ploting area
  chart.SetPlotArea( 30, 30, 40, 50 )

  '  Generate Blue Color Number
  ColorValue1 = ColorRGB( 255, 0, 0 )
  '  Generate Green Color Number
  ColorValue2 = ColorRGB( 0, 255, 0 )
  '  Generate Red C0lor Number
  ColorValue3 = ColorRGB( 0, 0, 255 )

  '  Add Line data series 1
  chart.AddLineSeries( AsSeries( Line1 ), 100, "Line1", ColorValue1 )
  '  Add Line data series 2
  chart.AddLineSeries( AsSeries( Line2 ), 100, "Line2", ColorValue2 )
  '  Add Line data series 3
  chart.AddLineSeries( AsSeries( Line3 ), 100, "Line3", ColorValue3 )

  '  Create & Save this new chart as a file.
  '  Always add a backSlash Character after "resultsReportPath"
  chart.Make( test.resultsReportPath + "\" + "LineChartExample.png" )

'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Returns - 1:

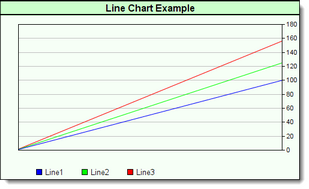

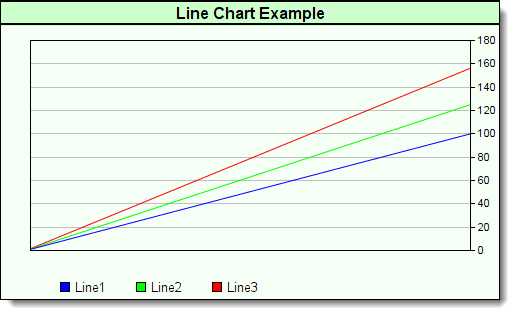

3-Line Chart Example:

Line_Chart_3-Color_Example 1-15-2013 10-52-36 AM



Example - 2:

'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
'  Create a chart area that is 80-Pixels wide, and 500-Pixels high
chart.NewXY( "System Equity Curves", iChartWidth, iChartHeight )
'  Number of data points to place on the chart
elementCount = test.currentDay
'  Place a scale label identifying the vertical scale information
chart.SetAxisTitles( "", "Percent Gain/Loss" )
'  Set X-Axis Dates to use beginning of month
chart.SetxAxisDates(AsSeries(DateSeries), elementCount, 4)
'  Plot a Black line at the chart's Y-Axis Zero location
chart.AddLineSeries( AsSeries( systemEquity ), elementCount, "", 0 )
'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
'  Examine each system in the Simulation Suite
For systemIndex = 1 TO test.systemCount
  '  Access each system in the suite
  test.SetAlternateSystem( systemIndex )
  '  Capture the daily exchange net equity rate change of '
  '  each system in the Suite
  For i = 1 TO elementCount
    '  Calculate the total equity net percentage change between '
    '  Test dates and store that information in a BPV system equity series.
     systemEquity[i] = ( alternateSystem.totalEquity[ elementCount - i ] _
              / alternateSystem.totalEquity[ elementCount - 1 ] - 1 ) * 100
  Next '  i
'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  '  Assign each system net rate change to a specific color
  plotColor = ColorItem[ systemIndex ]
'OR
  '  Consider a random number color assignment
  '                            BLUE       GREEN          RED
  'plotColor = ColorRGB( Random(255), Random(255), Random(255) )
  '  Place this system's test-date total equity percentage net change
  '  value in the chart space using the new color
  chart.AddLineSeries( AsSeries(systemEquity), elementCount, _
                          alternateSystem.name, plotColor )
Next '  systemIndex
'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
'  When all the system's equity changes are display as new chart
'  lines, save the image information as a file.
chart.Make( sFilePath2 )
'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Returns - 2:

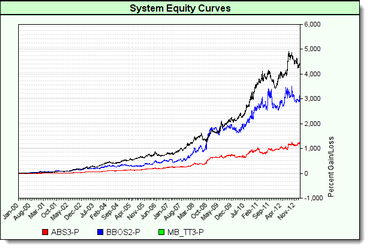

Multi-Line Chart Example:

Multi-Chart_2-Sys_(600x400) 2-2-2013 10-31-40 AM





Links:

AsSeries, ColorRGB, Make, NewXY, resultsReportPath, SetPlotArea

See Also:

Chart
