Quick Charts

The Tools Menu Charting area provides a Quick Chart control to display and use a simple charting feature that will display Quick Charts in this  Trading Blox Builder Licensed version.



Click to Enlarge; Click to Reduce.

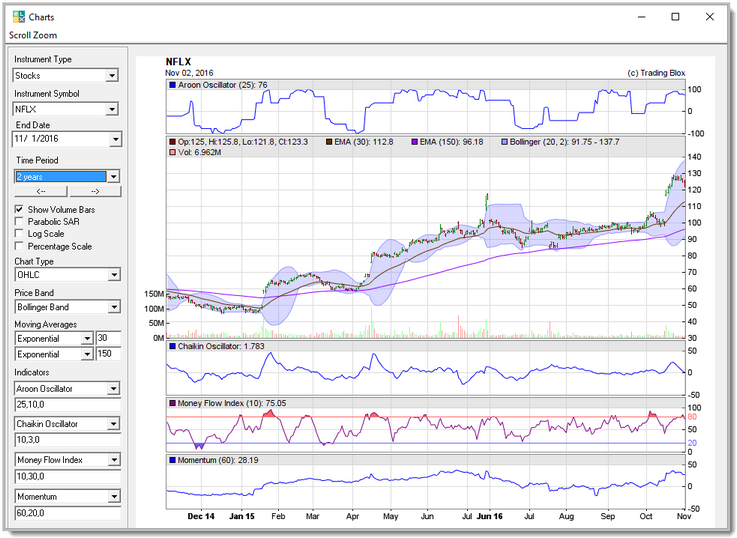

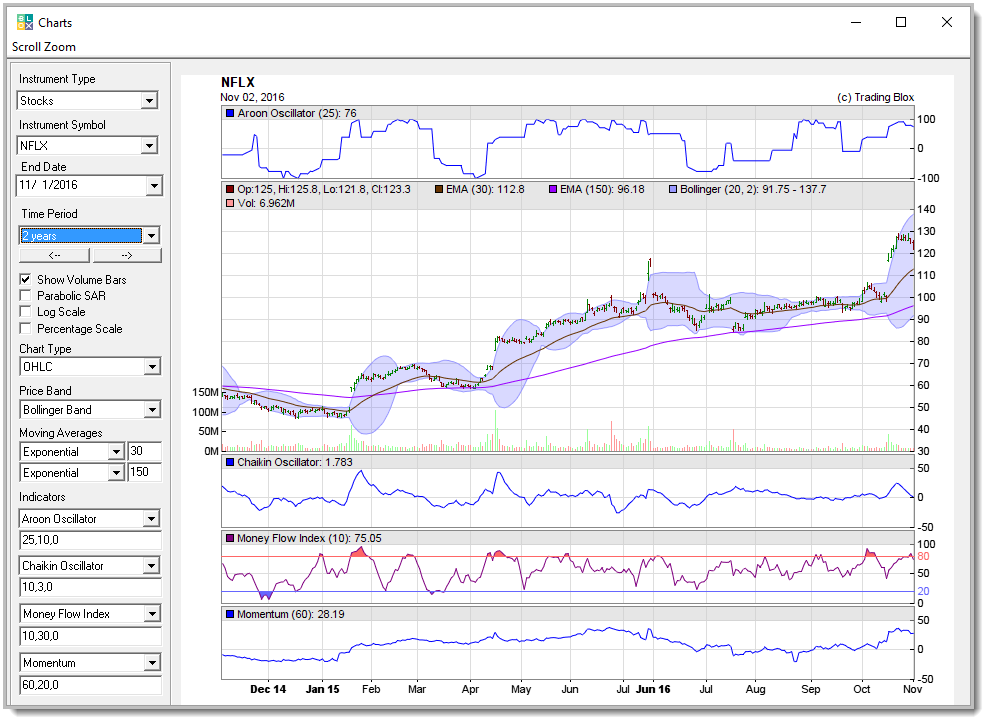

Quick Chart Stock Symbol Example



Quick Chart Options:

Description:

Instrument Type

Stock/Futures/Forex

Instrument Symbol

The symbol as entered into the Dictionary

End Date

Defaults to today, but can be set to any date using the calendar picker

Time Period

Set to the time period for the chart. The back and forward arrows move that amount forward and back in time, to scroll the chart.

Chart Options

Show Volume Bars

Parabolic SAR

Log Scale

Percentage Scale

Chart Type

Candlestick

Closing Price

Median Price

OHLC Bars

Typical Price

Weighted Close

Price Band

Bollinger Band

Donchian Band

Envelope

Moving Averages

Up to two moving averages can be plotted on the chart. Select the type, and enter the bars to use to the right.

Simple

Exponential

Triangular

Weighted

Indicators

Up to four indicators can be plotted with the chart. The first one will be on top. Use the space below to enter the parameters such as 14 or 14,20 or 14,20,10 depending on how many parameters the indicator needs.



Values to enter are limited to three values.  Enter the left-most value first, and then the other one or two values if needed.  When more values are entered than needed, the value not needed are ignored.

Note:

These indicators are all computed by the third party charting package and are for visual reference only. They are not necessarily computed the same way as the indicators in the Trading Blox Systems.



Quick Chart Indicators:

Accumulation/Distribution

Aroon Oscillator

Aroon Up/Down

Avg Directional Index

Avg True Range

Bollinger Band Width

Chaikin Money Flow

Chaikin Oscillator

Chaikin Volatility

Close Location Value

Commodity Channel Index

Detrended Price Osc.

Donchian Channel Width

Ease of Movement

Fast Stochastic

MACD

Mass Index

Momentum

Money Flow Index

Neg Volume Index

On Balance Volume

Performance

% Price Oscillator

% Volume Oscillator

Pos. Volume Index

Price Volume Trend

Rate of Change

RSI

Slow Stochastic

Stochastic-RSI

TRIX

Ultimate Oscillator

Volume

William's %R
