SetAuxiliaryWindowText( "windowText" )

"windowText"

"windowText" is a Non_Auto indexed BPV String array.

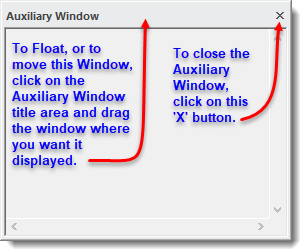

The contents of this Auxiliary Window are sent using the SetAuxiliaryWindowText( windowText ) function, where "windowText" is a non-auto-indexed BPV String array.

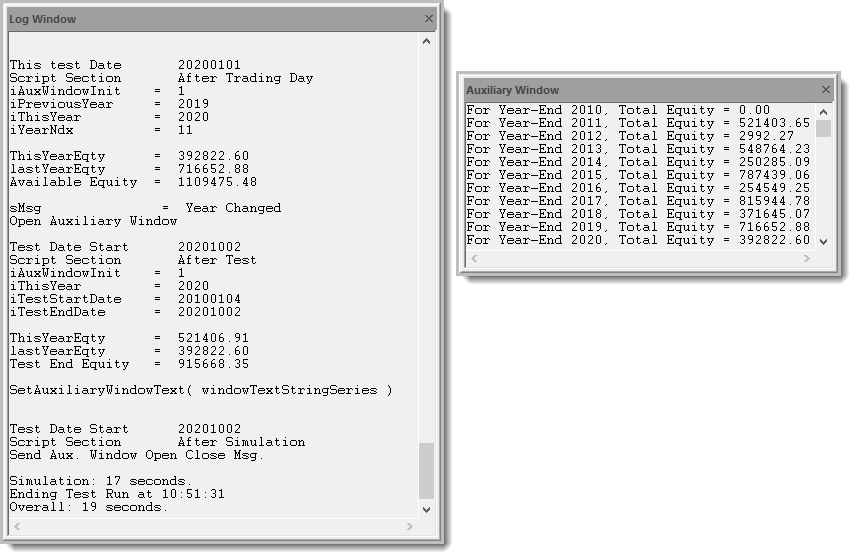

The example script section is created as an Auxiliary Blox.  The output from that block is created when this Auxiliary blox is included in a system.  In this example's output, the Dual Moving Average system installed when Trading Blox Builder is installed is used to generate trades on a random selection of EFT symbols that you should edit to limit the "Not Found" reminder for being different.

Script Use Details:

There are many ways to use the Auxiliary and Log window displays.  This section provides a code example that sends new text information at the end of each year to a text-series element row that increments each time text is created.  In this test script the process is kept simple so the process capabilities can be the focus.

Create a BPV test-series:

This dialog creates the text-series "windowTextString."  As each ends, the text message sent to the "windowTextString" reports the year that ended and the current change in available equity.

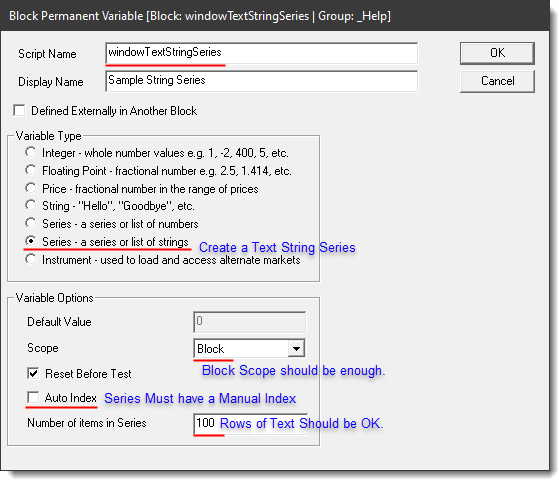

BPV Dialog String-Series Settings

Once you've named your string series, the example script used the Block's scope range.  When everything is contain within the same blox, there is no need for a broader scope range.   In this script example the process captures information and that is transformed to a text statement so it can be sent to a row in the newly created text series created earlier.

Execute this function: SetAuxiliaryWindowText statement in the After Test script to emulate the example's process.

This Example Script is contained in the Suite Link Below:

SetAuxiliaryWindowText Suite with Blox

'  =================================================================
blockname: SetAuxiliaryWindowText - blox
'  =================================================================
'  -----------------------------------------------------------------
' block Permanent VARIABLES

' These variables are displayed so you'll understand more.
'  -----------------------------------------------------------------
windowTextStringSeries [ Sample String Series ]; Series String; 0.000000; block
iYearNdx [ Cerate a Msg For each test date Year change ]; Integer; 0; block
iAuxWindowInit [ ]; Integer; 0; block
iThisYear [ Year being tested. ]; Integer; 0; block
sMsg [ ]; String; ; block
iTestEndDate [ Last test Date YYYYMMDD ]; Integer; 0; block
iTestStartDate [ Human readable name goes here... ]; Integer; 0; block
iPreviousYear [ ]; Integer; 0; block
iAnswer [ ]; Integer; 0; block
iTestYearsCount [ Human readable name goes here... ]; Integer; 0; block
lastYearEqty [ ]; Floating; 0.000000; block
ThisYearEqty [ ]; Floating; 0.000000; block
'  -----------------------------------------------------------------
===================   SCRIPT_CHANGE:
'  =================================================================
'  SetAuxiliaryWindowText
' BEFORE TEST SCRIPT - START
'  =================================================================
'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  '  Initialize Auxiliary Window Init Status
  iAuxWindowInit = FALSE
  '  Initialize Year Value
  iThisYear = Year(test.currentDate)
  '  Start Test Date
  iTestStartDate = test.testStart
  '  Last Test Date
  iTestEndDate = test.testEnd
  '  Get the Number of years in the Test.
  iTestYearsCount = Year(iTestEndDate) - Year(iTestStartDate) + 1
  '  Get Starting Equity
  lastYearEqty = test.totalEquity
  ThisYearEqty = test.totalEquity
  '  --------------------------------------------------------------
  '  Display the Setup Details
  PRINT
  PRINT "Test Date Start        ", test.currentDate
  PRINT "Script Section         ", block.scriptName
  PRINT "iAuxWindowInit       = ", iAuxWindowInit
  PRINT "iThisYear            = ", iThisYear
  PRINT "iTestStartDate       = ", iTestStartDate
  PRINT "iTestEndDate         = ", iTestEndDate
  PRINT
  PRINT "Year(iTestStartDate) = ", Year(iTestStartDate)
  PRINT "Year(iTestEndDate)   = ", Year(iTestEndDate)
  PRINT "iTestYearsCount      = ", iTestYearsCount
  PRINT "ThisYearEqty         = ", AsString(ThisYearEqty, 2)
  PRINT "lastYearEqty         = ", AsString(lastYearEqty , 2)
  PRINT "Trading Equity       = ", AsString(test.totalEquity, 2)
  PRINT
  PRINT "ThisYearEqty         = ", ThisYearEqty
  PRINT "lastYearEqty         = ", AsString(lastYearEqty , 2)
  PRINT
'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
'  =================================================================
' BEFORE TEST SCRIPT - END
'  SetAuxiliaryWindowText
'  =================================================================
===================   SCRIPT_CHANGE:
'  =================================================================
'  SetAuxiliaryWindowText
' BEFORE TRADING DAY SCRIPT - START
'  =================================================================
'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  '  Initialize Year Value
  iThisYear = Year(test.currentDate)
    '  Calculate This Year equity change
    ThisYearEqty = test.totalEquity - lastYearEqty
    '  -----------------------------------------------------------
  '  When the Year Changes, display change
  If iThisYear > iPreviousYear THEN
    '  Show Year Change
    PRINT
    PRINT "This Test Date      ", test.currentDate
    PRINT "Script Section      ", block.scriptName
    PRINT "iAuxWindowInit    = ", iAuxWindowInit
    PRINT "iThisYear         = ", iThisYear
    PRINT
    PRINT "ThisYearEqty      = ", AsString(ThisYearEqty, 2)
    PRINT "lastYearEqty      = ", AsString(lastYearEqty , 2)
    PRINT "Available Equity  = ", AsString(test.totalEquity, 2)
    PRINT
  ENDIF '  iThisYear > iPreviousYear
'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
'  =================================================================
' BEFORE TRADING DAY SCRIPT - END
'  SetAuxiliaryWindowText
'  =================================================================
===================   SCRIPT_CHANGE:
'  =================================================================
'  SetAuxiliaryWindowText
' AFTER TRADING DAY SCRIPT - START
'  =================================================================
'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  '  Compare Current Year to Previous Year
  If iThisYear > iPreviousYear THEN
    '  Calculate This Year equity change
    ThisYearEqty = test.totalEquity - lastYearEqty

    '  If this is the first time, initialize
    '  iYearIndex & Update the Init-Flag
    If iAuxWindowInit = FALSE THEN
        '  Update Annual Auxiliary Message
        iYearNdx = 1
        '  Show Init is complete
        iAuxWindowInit = TRUE
    ELSE
        '  Increment Year Index
        iYearNdx = iYearNdx + 1
    ENDIF
    '  -----------------------------------------------------------
    PRINT
    PRINT "This test Date      ", test.currentDate
    PRINT "Script Section      ", block.scriptName
    PRINT "iAuxWindowInit    = ", iAuxWindowInit
    PRINT "iPreviousYear     = ", iPreviousYear
    PRINT "iThisYear         = ", iThisYear
    PRINT "iYearNdx          = ", iYearNdx
    PRINT
    PRINT "ThisYearEqty      = ", AsString(ThisYearEqty, 2)
    PRINT "lastYearEqty      = ", AsString(lastYearEqty , 2)
    PRINT "Available Equity  = ", AsString(test.totalEquity, 2)
    PRINT
    PRINT "sMsg               = ", "Year Changed"
    '  -----------------------------------------------------------
    '  Update Previous Year
    iPreviousYear = iThisYear
    '  Update This Year's Equity
    lastYearEqty = ThisYearEqty
    '  -----------------------------------------------------------
    '  This is anything goes text
    sMsg = "For Year-End " + AsString(iThisYear, 0)_
            + ", Total Equity = " + AsString(ThisYearEqty, 2)
    '  Update StringSeries Next Element
    windowTextStringSeries[iYearNdx] = sMsg
  ENDIF
'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
'  =================================================================
' AFTER TRADING DAY SCRIPT - END
'  SetAuxiliaryWindowText
'  =================================================================
===================   SCRIPT_CHANGE:
'  =================================================================
'  SetAuxiliaryWindowText
' AFTER TEST SCRIPT - START
'  =================================================================
'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  PRINT "Open Auxiliary Window"
  '  Open the Auxiliary Window
  OpenAuxiliaryWindow
  '  --------------------------------------------------------------
  PRINT
  PRINT "Test Date Start     ", test.currentDate
  PRINT "Script Section      ", block.scriptName
  PRINT "iAuxWindowInit    = ", iAuxWindowInit
  PRINT "iThisYear         = ", iThisYear
  PRINT "iTestStartDate    = ", iTestStartDate
  PRINT "iTestEndDate      = ", iTestEndDate
  PRINT
  PRINT "ThisYearEqty      = ", AsString(ThisYearEqty, 2)
  PRINT "lastYearEqty      = ", AsString(lastYearEqty , 2)
  PRINT "Test End Equity   = ", AsString(test.totalEquity, 2)
  PRINT
  PRINT "SetAuxiliaryWindowText( windowTextStringSeries )"
  PRINT
  '  --------------------------------------------------------------
  '  Send the windowTextStringSeries Records to
  '  the Auxiliary Window display
  SetAuxiliaryWindowText( windowTextStringSeries )
'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
'  =================================================================
' AFTER TEST SCRIPT - END
'  SetAuxiliaryWindowText
'  =================================================================
===================   SCRIPT_CHANGE:
'  =================================================================
'  SetAuxiliaryWindowText
' AFTER SIMULATION SCRIPT - END
'  =================================================================
'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  PRINT
  PRINT "Test Date Start     ", test.currentDate
  PRINT "Script Section      ", block.scriptName
  PRINT "Send Aux. Window Open Close Msg."
  PRINT
  ' ---------------------------------------------------------------
  '  Message Box Display Test
  sMsg = "OK to Leave Auxiliary Window Open -- Cancel to Close"
  '  Generate the Message Display
'   iAnswer = MessageBox( sMsg , 1, 32 )
  '  If Cancel is used, Close the Auxiliary Window
  If iAnswer = 2 THEN
    '  Close the Auxiliary Window
    CloseAuxiliaryWindow
  ENDIF
'  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
'  =================================================================
' AFTER TEST SCRIPT - END
'  SetAuxiliaryWindowText
'  =================================================================
===================   SCRIPT_CHANGE:

OpenAuxiliaryWindow, CloseAuxiliaryWindow,

See Also:

Auxiliary Window, Log Window
