System Parameter Settings

The System Run Parameters section lists the specific values of the parameters for a given test.  This information appears at the bottom of the System's Summary.

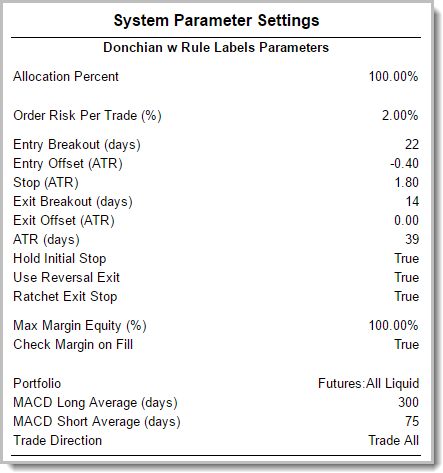

This first image shows the parameters as they appear when the suite has a single system:

Click to Enlarge; Click to Reduce.

System Parameter Settings in a Single System Suite

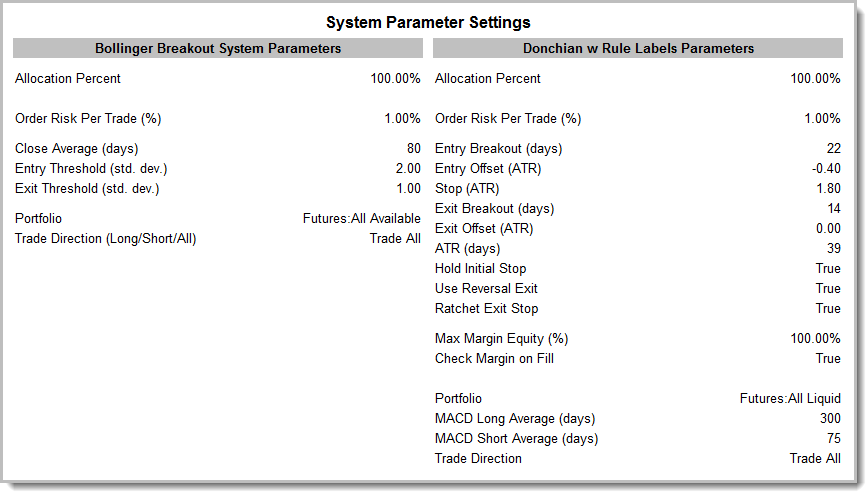

This next image shows the parameters two sets of parameters in a multiple system suite:

Click to Enlarge; Click to Reduce.

System Parameter Settings in a Multiple System Suite

When a multiple system suite has systems that have are assigned by the Allocation Manager 0%, those system parameters are not displayed in the summary report, and the system names with zero allocation are not listed.



When a system in a multiple system suite is given an allocation of zero percent,  Trading Blox will remove that system from the list of selected systems.  To retain the selected systems in a suite, and allow one or more of them to influence the performance of the other systems, add the Virtual System blox to each of the systems that could be assigned a 0% allocation so it won't be removed from the suite's list of selected systems.



Any system using the Virtual System parameter set to TRUE, will stay in the suite of selected systems, but there performance will not add or detract from the active systems where the Virtual System blox is set to FALSE.  By adding the Virtual System blox to the systems in a suite, the enabling of various system combinations can easily be tested tested.

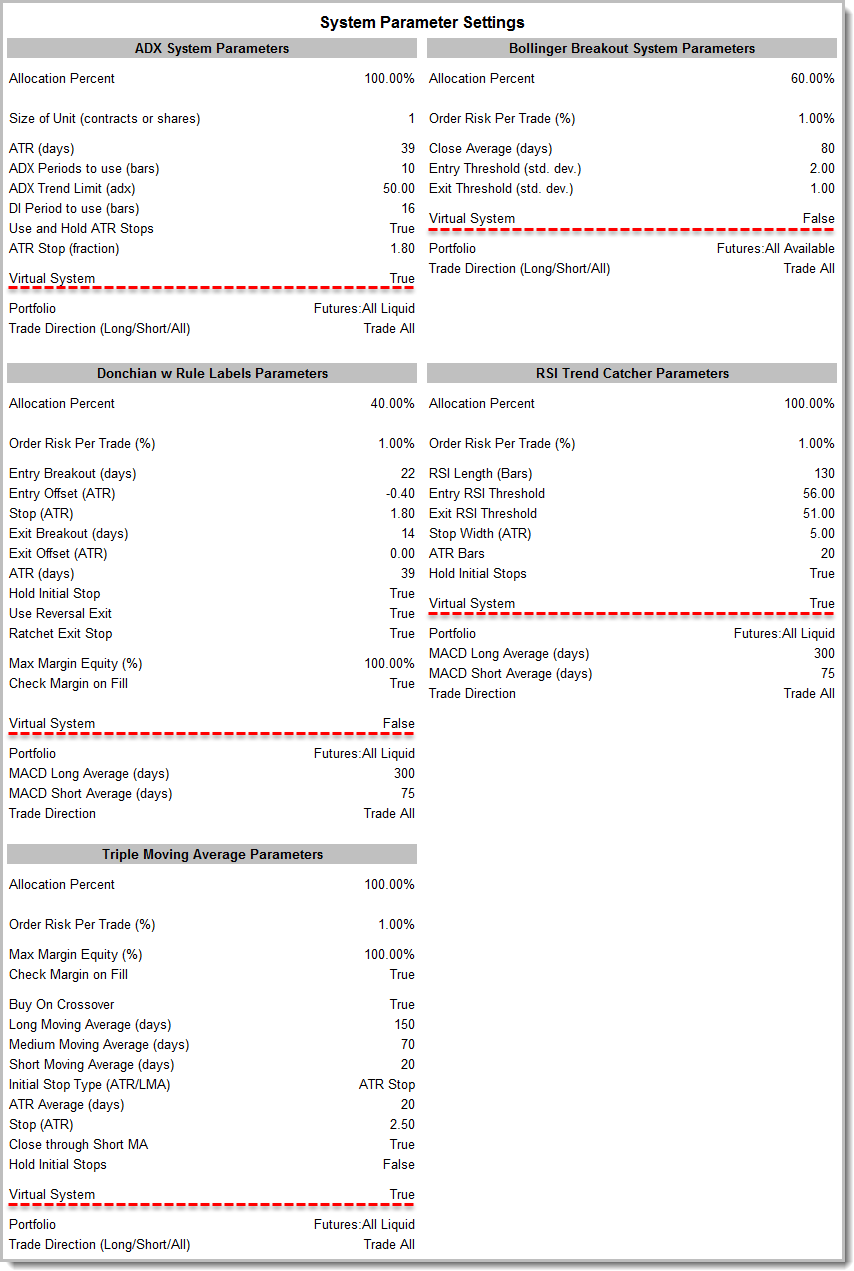

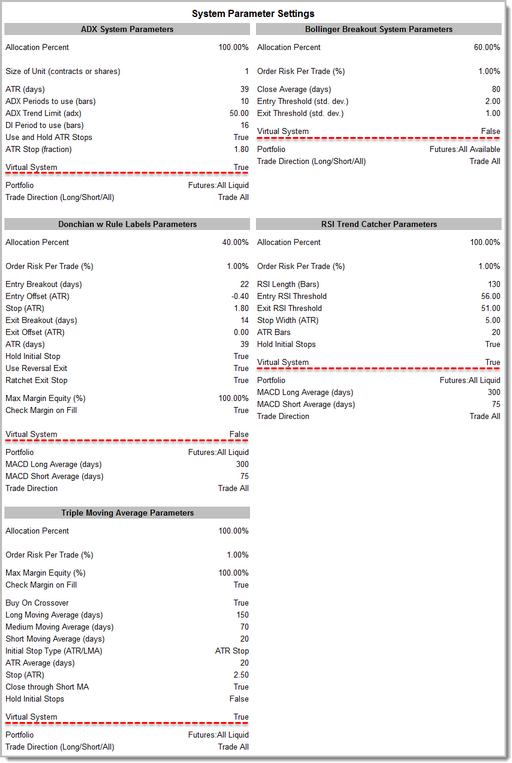

This next system parameter list of systems shows the account allocation for each of the five systems selected for the testing suite.  Three of the systems have their Virtual System set to TRUE and show an allocation of 100%.  The other two systems show the Virtual System is set to FALSE, so those system's are included in the summary reporting numbers.

Click to Enlarge; Click to Reduce.

System Parameter Settings in a Multiple System Suite with Virtual Control
